Math Refresher

Basic Calculus

Introduction

This is a refresher on basic calculus. It is not meant to be a substitute for a full course on calculus but rather a quick review of the fundamental concepts and techniques that will be used this semester.

Limits

The limit of a function \(f(x)\) as \(x\) approaches \(a\) is the value that \(f(x)\) approaches as \(x\) gets closer and closer to \(a\). We write this as:

\[ \lim_{{x \to a}} f(x) = L \]

Here, \(L\) is the limit of the function \(f(x)\) as \(x\) approaches \(a\).

For example, consider the function \(f(x) = x^2\). The limit of \(f(x)\) as \(x\) approaches 2 is 4:

\[ \lim_{{x \to 2}} x^2 = 4 \]

Limits to Derivatives

Limits can also be used to define derivatives. The derivative of a function \(f(x)\) is the slope of the function at a given point. The derivative of \(f(x)\) at \(x = a\) is written as \(f'(a)\). The derivative is defined as:

\[ f'(a) = \lim_{{h \to 0}} \frac{f(a+h) - f(a)}{h} \]

In other words, the derivative is the slope of the function at a particular point \(a\). This can be approximated numerically by choosing a very small value for \(h\).

For example, consider the function \(f(x) = x^2\). The derivative of \(f(x)\) at \(x = a\) is:

\[ \begin{aligned} f'(a) &= \lim_{{h \to 0}} \frac{(a+h)^2 - a^2}{h} \\ &= \lim_{{h \to 0}} \frac{a^2 + 2ah + h^2 - a^2}{h} \\ &= \lim_{{h \to 0}} (2a + h) = 2a. \end{aligned} \]

If other methods fail, one can always rely on numerical differentiation.

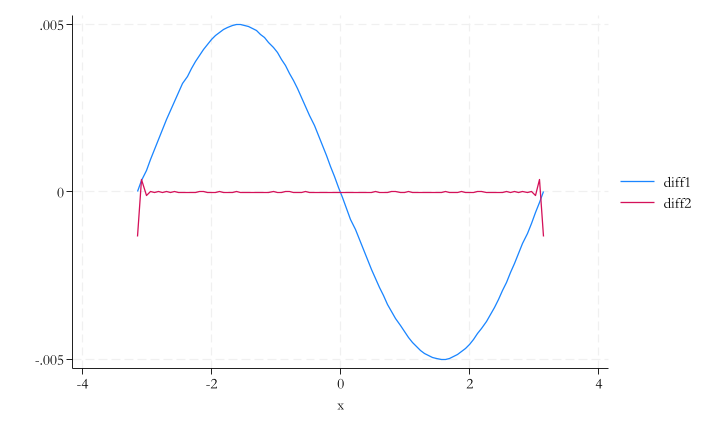

Stata and Numerical Differentiation

Stata can be used to calculate numerical derivatives. mata (matrix algebra language) has powerful rutines for numerical differentiation. Stata also has some capabilities, and you can always do it manually.

Code

clear
range x -_pi _pi 100
gen y = sin(x)
gen dydx = (sin(x+0.01) - sin(x)) / 0.01
dydx y x, gen(dydx2)
gen dydx3 = cos(x)
gen diff1 = (dydx - dydx3)
gen diff2 = (dydx2 - dydx3)
line diff1 diff2 x

Number of observations (_N) was 0, now 100.

Derivatives of Common Functions

For most common functions, the derivative can be calculated using the following rules:

The derivative of a constant is zero.
The derivative of \(x^n\) is \(nx^{n-1}\).
The derivative of \(\ln(x)\) is \(\frac{1}{x}\).
The derivative of \(e^x\) is \(e^x\).
The derivative of \(a^x\) is \(a^x \ln a\).

There are other rules for derivatives, but these are the ones that will be used most often.

Derivatives of Composite Functions

The derivative of a composite function \(f(g(x))\) is given by the chain rule:

\[ \frac{d}{dx} f(g(x)) = f'(g(x)) \cdot g'(x). \]

For example, consider the function \(f(x) = \ln(x^2)\). The derivative of \(f(x)\) is:

\[ \begin{aligned} \frac{d}{dx} \ln(x^2) &= \frac{1}{x^2} \cdot \frac{d}{dx} (x^2) \\ &= \frac{1}{x^2} \cdot 2x \\ &= \frac{2}{x}. \end{aligned} \]

Derivatives of Sums and Products

The derivative of a sum of functions is the sum of the derivatives of the functions:

\[ \frac{d}{dx} (f(x) + g(x)) = \frac{d}{dx} f(x) + \frac{d}{dx} g(x). \]

The derivative of a product of functions is given by the product rule:

\[ \frac{d}{dx} (f(x) \cdot g(x)) = f'(x) \cdot g(x) + f(x) \cdot g'(x). \]

The derivative of a quotient of functions is given by the quotient rule:

\[ \frac{d}{dx} \left( \frac{f(x)}{g(x)} \right) = \frac{f'(x) \cdot g(x) - f(x) \cdot g'(x)}{g(x)^2}. \]

This is a special case of the product rule.

Maximization and Minimization

Derivatives can be used to identify the maximum and minimum values of a function. Consider a function \(f(x)\).
To find the maximum (or minimum) value of \(f(x)\), we take the derivative of \(f(x)\) and set it equal to zero.
- This is called the first-order condition.
- The idea is that at the maximum (or minimum), the value of \(f(x)\) shouldn’t change anymore (it should be flat). Thus, the derivative of \(f(x)\) should be zero.

For example, consider the function \(f(x) = 5x^2 - 4x + 2\). The derivative of \(f(x)\) is:

\[ \begin{aligned} f'(x) &= 10x - 4 = 0 \\ x &= \frac{4}{10} = 0.4. \end{aligned} \]

So when \(x\) is equal to 0.4, the function \(f(x)\) does not change anymore.

This, however, is insufficient to determine whether the function is at a maximum or a minimum.

To determine this, we take the second derivative of \(f(x)\), known as the second-order condition:

\[ f''(x) = 10 > 0. \]

Because the second derivative is positive, we know that \(f(x)\) is at a minimum when \(x = 0.4\).
- If the second derivative were negative, we would know that \(f(x)\) is at a maximum when \(x = 0.4\).

Why is this the case?

\(f'(x)\) measures the changes in \(f(x)\) along \(x\). When \(f'(x) = 0\), \(f(x)\) is not changing anymore.
\(f''(x)\) measures the changes in \(f'(x)\) (the changes in those changes).
- Because it is positive, we know that \(f'(x)\) is increasing. This means that at \(x = 0.4\), the changes in \(f(x)\) are going from negative to positive, indicating a minimum.

Optimization with Multiple Variables

When considering multiple variables, we also need to rely on the first- and second-order conditions to find minimum and maximum values. Consider a function \(f(x, y)\). The first-order conditions are:

\[ \begin{aligned} \frac{\partial}{\partial x} f(x, y) &= 0, \\ \frac{\partial}{\partial y} f(x, y) &= 0. \end{aligned} \]

These conditions indicate that, in the direction of \(x\) and \(y\), the function \(f(x, y)\) is not changing anymore. Thus, we have a potential maximum or minimum. To identify a minimum, we need second-order conditions:

\[H = \begin{bmatrix} f_{xx} & f_{xy} \\ f_{yx} & f_{yy} \end{bmatrix} \]

where \(H\) is the Hessian matrix.

If \(\text{Det}(H) > 0\) and \(f_{xx} > 0\), then we have a minimum.
If \(\text{Det}(H) > 0\) and \(f_{xx} < 0\), then we have a maximum.
If \(\text{Det}(H) < 0\), then we have a saddle point.
If \(\text{Det}(H) = 0\), the result is inconclusive.

Optimization with Constraints

When optimizing a function with constraints, we can use the method of Lagrange multipliers. Consider a function \(f(x, y)\) subject to the constraint \(g(x, y) = z\). The Lagrangian is:

\[ L(x, y, \lambda) = f(x, y) + \lambda (z - g(x, y)). \]

The Lagrangian is the function \(f(x, y)\) plus the constraint \(g(x, y)\) multiplied by a constant \(\lambda\).
The constant \(\lambda\) is called the Lagrange multiplier.
The constraint is written as the difference between the constant \(z\) and the function \(g(x, y)\).
The Lagrangian is then optimized with respect to \(x\), \(y\), and \(\lambda\).

These are the equivalent first-order conditions:

\[ \begin{aligned} \frac{\partial}{\partial x} L(x, y, \lambda) &= 0, \\ \frac{\partial}{\partial y} L(x, y, \lambda) &= 0, \\ \frac{\partial}{\partial\lambda} L(x, y, \lambda) &= z - g(x, y) = 0. \end{aligned} \]

The last condition is the constraint, and it implies that the constraint must be satisfied. The second-order conditions are the same as before.
