Multiple Regression Analysis

Specification and Data Issues: A1 how could you!

Fernando Rios-Avila

What do we mean with model miss-specification

There are various kinds of model specification we will talk about.
- There are important variables you did not include in your model: Endogeneity
- You added all relevant variables…just not in the right way.
- You added proxies for variables you had no access to (Question change)
- You have all relevant data, but with errors.
- You have some missing data

Functional Form Misspecification

Simple linear functions work in almost ALL cases. They can be thought as first order Taylor expansions: \[\begin{aligned} y &= f(x) + e \\ f(x) &\simeq f(x_0) +\frac{\partial f(x)}{\partial x}|_{x=x_0} (x-x_0)+R+e \\ f(x) &\simeq \color{red}{ f(x_0)} \color{red}{-\frac{\partial f(x)}{\partial x}|_{x=x_0} x_0} +\frac{\partial f(x)}{\partial x}|_{x=x_0} x+R+e \\ y &= \color{red}{\beta_0}+\beta_1 x + R+ e \end{aligned} \]

So, for “reasonable” values of X, or when analyzing average marginal effects \(R\) should be small enough to be ignored.

In other words, for Overall effects Simple linear model works reasonably well! (most of the time)

If you are interested in individuals (or alike people), you may need flexiblity!
Ignoring functional form misspecification imposes unwanted assumptions (homogeneity), that could create further problems.
- Specially if data is skewed
But how flexible is flexible enough?
- We will only consider quadratic terms and interactions,
- but there is a large literature on making very flexible estimations (non-paramatric analysis)

Code

clear
set seed 10
set obs 1000
gen p = (2*_n-1)/(2*_N)
gen x = invchi2(5, p)/2
gen y = 1 + x + (x-2.5)^2 + rnormal()
reg y x
display "Quadratic"
qui:reg y c.x##c.x
margins, dydx(x)
display "Cubic"
qui:reg y c.x##c.x##c.x
margins, dydx(x)

Number of observations (_N) was 0, now 1,000.

      Source |       SS           df       MS      Number of obs   =     1,000
-------------+----------------------------------   F(1, 998)       =   1287.16
       Model |  22189.0552         1  22189.0552   Prob > F        =    0.0000
    Residual |  17204.2788       998  17.2387563   R-squared       =    0.5633
-------------+----------------------------------   Adj R-squared   =    0.5628
       Total |  39393.3339       999  39.4327667   Root MSE        =     4.152

------------------------------------------------------------------------------
           y | Coefficient  Std. err.      t    P>|t|     [95% conf. interval]
-------------+----------------------------------------------------------------
           x |   2.983973   .0831722    35.88   0.000      2.82076    3.147185
       _cons |  -1.467351   .2458875    -5.97   0.000    -1.949866   -.9848348
------------------------------------------------------------------------------
Quadratic

Average marginal effects                                 Number of obs = 1,000
Model VCE: OLS

Expression: Linear prediction, predict()
dy/dx wrt:  x

------------------------------------------------------------------------------
             |            Delta-method
             |      dy/dx   std. err.      t    P>|t|     [95% conf. interval]
-------------+----------------------------------------------------------------
           x |   1.033401   .0258934    39.91   0.000     .9825894    1.084213
------------------------------------------------------------------------------
Cubic

Average marginal effects                                 Number of obs = 1,000
Model VCE: OLS

Expression: Linear prediction, predict()
dy/dx wrt:  x

------------------------------------------------------------------------------
             |            Delta-method
             |      dy/dx   std. err.      t    P>|t|     [95% conf. interval]
-------------+----------------------------------------------------------------
           x |   1.041387   .0292892    35.56   0.000     .9839117    1.098863
------------------------------------------------------------------------------

Reset Ramsey test

Intuition: If the model is misspecified, perhaps we need to control for more non-linearities and interactions.
Naive test: Add more controls (quadratics and interactions) (like White test, this will grow fast)
Reset - Ramsey test: Get predictions from original model, and add it as control

\[y = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \dots + \delta_1 \hat y^2 + \delta_2 \hat y^3 +e \]

\(H_0: \delta_1 = \delta_2 = 0\): (everything is awesome)

\(H_1: H_0\) is false: we need to fix the problem

RRT does not tell you “How” to fix the problem.

estat ovtest

(bad name tho)

Davidson-MacKinnon test

Two non-tested models:

\[\begin{aligned} y &= \beta_0 + \beta_1 x_1 + \beta_2 x_2 + e \\ y &= \gamma_0 + \gamma_1 log(x_1) + \gamma_2 log(x_2) + e \\ \end{aligned} \]

Which one is more appropriate? eq1? or eq2? This are non-nested models, so its difficult to say.
- You could nest them:

\[y = \theta_0 + \theta_1 x_1 + \theta_2 x_2 + \theta_3 log(x_1) + \theta_4 log(x_2) + e \]

and test \(\theta_1=\theta_2=0\) or \(\theta_3=\theta_4=0\).

or the “true” Davidson-MacKinnon test:
- First Obtain predictions from competing models: \[\begin{aligned} \hat y &= \hat\beta_0 + \hat\beta_1 x_1 + \hat\beta_2 x_2 \\ \check y &= \hat \gamma_0 + \hat\gamma_1 log(x_1) + \hat\gamma_2 log(x_2) \\ \end{aligned} \]
- Then add the predictions as added controls in the alternative model: \[\begin{aligned} y &= \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \theta_1 \check y +e \\ y &= \gamma_0 + \gamma_1 log(x_1) + \gamma_2 log(x_2) + \theta_1 \hat y + e \\ \end{aligned} \]
Unfortunately, you may ended up with conflicting results.

Proxy Variables

For unobserved variables

A re-tell of Omitted variable Bias

We know this. If a variable that SHOULD be in the model is not added, it will generate an OMV, unless it was uncorrelated to the model error.
- Lesson: add important variables!
What if those variables are not available? how do you solve the problem?
- IV (we will talk about that later) or
- Proxy Variable (a bandaid)

Proxies

Consider: \[log(wages) = \beta_0 + \color{blue}{\beta_1} exper + \color{blue}{\beta_2} educ + \beta_3 skill + e \]

Where you are really interested in \(\beta_1 \And \beta_2\).

Since we dont have \(skill\), and omitting it will bias our coefficients, we can use a proxy \(ASVAB\).

\[log(wages) = \beta_0 + \color{blue}{\beta_1} exper + \color{blue}{\beta_2} educ + \gamma_3 ASVAB + e \]

and done?

Using a Proxy will work only under the following condition:

Conditioning on the observed variable and proxy, the unobserved variable has to be uncorrelated to other variables in the model:

\[\begin{aligned} E(x_3^*|x_1,x_2,x_3)&=\alpha_0 + \alpha_1 x_3 \\ E(skill|exper,educ,ASVAB)&=\alpha_0 + \alpha_1 ASVAB \end{aligned} \]

If this happens, you can still estimate \(\beta_1 \And \beta_2\), although the constant and slope of the proxy varible will be biased for the proxied variable.

\[\begin{aligned} y &= \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x^*_3 + e \ ; \ \color{blue}{x^*_3 = \delta_0 + \delta_1 x_3 + v} \\ y &= \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 (\delta_0 + \delta_1 x_3 + v) + e \\ &= \color{brown}{\beta_0 +\beta_3\delta_0} \color{black}{+ \beta_1 x_1 + \beta_2 x_2 + \beta_3 \delta_1 x_3 +} \color{green}{\beta_3 v + e} \\ &=\color{brown}{\alpha_0} + \beta_1 x_1 + \beta_2 x_2 + \alpha_1 x_3 + \color{green}{u} \\ \end{aligned} \]

What about Lags (of dep variable)?

Increses Data requirements (panel? pseudo panel?)
Further assumptions are required (Past exogenous of present)
But allows controlling for underlying factors or historical factors

Code

frause crime2, clear
qui:reg crmrte unem llawexpc if year == 87
est sto m1
qui:reg crmrte unem llawexpc lcrmrt_1 if year == 87
est sto m2
qui:reg ccrmrte unem llawexpc if year==87
est sto m3
esttab m1 m2 m3, se star(* .1 ** 0.05 *** 0.01) b(3) ///
mtitle(crimert crimert change_crrt)


------------------------------------------------------------
                      (1)             (2)             (3)
                  crimert         crimert     change_crrt
------------------------------------------------------------
unem               -3.659           0.346          -0.125
                  (3.471)         (2.127)         (2.152)

llawexpc           16.452         -20.059*        -10.377
                 (18.531)        (11.842)        (11.487)

lcrmrt_1                          127.111***
                                 (14.399)

_cons              10.655        -337.106***       79.288
                (134.223)        (89.507)        (83.200)
------------------------------------------------------------
N                      46              46              46
------------------------------------------------------------
Standard errors in parentheses
* p<.1, ** p<0.05, *** p<0.01

Note: Skip 9-2c and 9-3

Measurement error

Why is \(X\) not the real \(X\)?

Often we treat data as if it they were perfect measures of the true data. But is that the case?
- Age: Do you report age in years, months, days, hours, minutes, etc
- Weight and Height: Even if measured, how accurate it can be? and do they make mistakes?
- Income: Do people report income accurately? or they Lie? why?
Depending on the type of error, magnitude, and if the affected variable is dep or indep, it may have diffrent consequences for OLS.
For now we will concentrate on a specific kind of measurement error: Classical measurement error

\[\begin{aligned} y_{obs} &= y_{true} + \varepsilon \\ E(\varepsilon) &=0; cov(\varepsilon,y_{true})=0; cov(\varepsilon,X's)=0 \end{aligned} \]

Error in \(y\) (dep variable)

Instead of: \(y^* = x\beta + e\)
We estimate \(y^*+\varepsilon = x\beta + e \rightarrow y^* = x\beta + e-\varepsilon\)
This implies that \(\beta's\) can still be unbiased when applying OLS.
However variance will be larger than when using true data:

Code

qui: frause oaxaca, clear
set seed 101
gen lnwage2=lnwage + rnormal(2)
qui:reg lnwage educ exper female
est sto m1
qui:reg lnwage2 educ exper female
est sto m2
esttab m1 m2, se

(213 missing values generated)

--------------------------------------------
                      (1)             (2)
                   lnwage         lnwage2
--------------------------------------------
educ               0.0858***       0.0902***
                (0.00521)        (0.0120)

exper              0.0147***       0.0171***
                (0.00126)       (0.00291)

female            -0.0949***      -0.0759
                 (0.0251)        (0.0580)

_cons               2.219***        4.132***
                 (0.0687)         (0.159)
--------------------------------------------
N                    1434            1434
--------------------------------------------
Standard errors in parentheses
* p<0.05, ** p<0.01, *** p<0.001

Error in \(X\) (indep variable)

Instead of: \(y = \beta_0 + \beta_1 x^* + e\)
We estimate \(y = \gamma_0 + \gamma_1 (x^* + \varepsilon) + v\)
By adding an error \(\varepsilon\) that has a zero relationship with \(y\), the “average” coefficient \(\gamma_1\) will be between the true \(\beta_1\) and 0. \[\begin{aligned} \gamma_1 &=\frac{\sum (y-\bar y)(x^* + \varepsilon - \bar x)}{\sum (x^* + \varepsilon - \bar x)^2} =\frac{\sum (y-\bar y)(x^* - \bar x)+ \sum (y-\bar y) \varepsilon}{\sum (x^* - \bar x)^2 + \sum \varepsilon^2} \\ &= \frac{\sum (y-\bar y)(x^* - \bar x)}{\sum (x^* - \bar x)^2 + \sum \varepsilon^2} \frac{\sum (x^* - \bar x)^2}{\sum (x^* - \bar x)^2} \\ & =\beta_1 \frac{\sigma^2_x}{\sigma^2_x + \sigma^2_\varepsilon} \end{aligned} \]

Code

frause oaxaca, clear
qui:sum educ
gen educ_error = educ + rnormal()*r(sd)
sum educ educ_error
qui:reg lnwage educ
est sto m1
qui:reg lnwage educ_error
est sto m2
esttab m1 m2, se

(Excerpt from the Swiss Labor Market Survey 1998)

    Variable |        Obs        Mean    Std. dev.       Min        Max
-------------+---------------------------------------------------------
        educ |      1,647    11.40134    2.374952          5       17.5
  educ_error |      1,647    11.36352    3.400767   .6707422   26.90462

--------------------------------------------
                      (1)             (2)
                   lnwage          lnwage
--------------------------------------------
educ               0.0800***
                (0.00539)

educ_error                         0.0399***
                                (0.00395)

_cons               2.434***        2.898***
                 (0.0636)        (0.0475)
--------------------------------------------
N                    1434            1434
--------------------------------------------
Standard errors in parentheses
* p<0.05, ** p<0.01, *** p<0.001

Missing Data, Nonrandom samples, and outliers

Missing Data (Assume Sample is complete)

What is it? you dont have data! Your \(N\) falls.
- Some data for some observations are missing.
- We may or may not know why they are missing
- and they maybe missing at random, or following unknown patterns.
If we are Missing data, and we do not know why, its a problem. We cant know if the sample represents the population, thus cannot be used for analysis.

How to deal with it?

if Missing completely at random (MCAR), analysis can be done as usual (no effects except smaller N)
if Missing at random (MAR), the analysis can be done, often using standard methods:
- Missingness depends on observed factors (\(X's\)).
- It is also known as exogenous sample selection.
- Intuitively, because all factors that determine selection are exogenous, you can identify who in the population is identified (Regression for men, women, high education, etc)
If Missing not at random (MNAR), you cant address the problem with standard analysis.
- Some methods such as Heckman selection or truncated regression, could be used. (advanced)
- Other wise, you can’t analyze the data (in a satisfactory manner)
- Intuitively, missingness is determined by unobserved factors, which also determines the outcome. (ie Analyze high wage population only)

Outliers and influencers

Not all data is made equal, and not all data has the same weight when estimating regressions.
Observations with high Influence are those with outliers based on the conditional distribution (\(y|x\)).
- While outliers are not necessarily bad for analysis, it is important to understand how sensitive your results are to excluding some observations.
Observations with high leverage are those with unusual characteristics.(\(X's\))
Combination of both may have strong impacts on the regression analysis.

Leverage of an observation is determined by the following:

Define \(H = X(X'X)^{-1}X'\)

Leverage \(h_i = H[i,i]\)

High \(h_i\) denotes more influence in the model. (sensitive)

Influence is typically detected based on “studentized” residuals

\[r_i = \frac{\hat e}{s_{-i}\sqrt{1-h_i}} \]

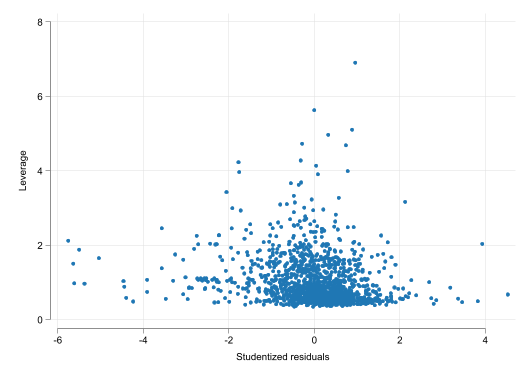

Example

Code

qui:{
frause oaxaca, clear
drop if lnwage==.
reg lnwage educ exper tenure female age
predict lev, lev
sum lev, meanonly
replace lev=lev/r(mean)
predict rst, rstud
}
set scheme white2
color_style tableau
scatter lev rst

Solutions

The problem with OLS is that it provides “too much weight” to outliers.
This is similar to the mean, which may not be very stable with extreme distributions.

There are at least two solutions to problems with outliers.

Robust Regression (different from regression with robust Standard errors)
- The idea is to penalize outliers, to reduce the impact on the estimated coefficients.

Quantile (median) Regression
- Modifies the objective function to be minized:

\[\beta's=\min_\beta \sum |y-x\beta| \]

Instead of using the squared of errors, it uses the absolute value.
- by doing this, coefficients are not sensitive to outliers! (as the median is better than the mean to capture typical values)
- Drawbacks: Its slower than OLS, and it can be difficult to interpret

rreg <- Robust Regression
qreg <- Quantile Regression

Done for now

Next week Midterm! and after that helping with A4
